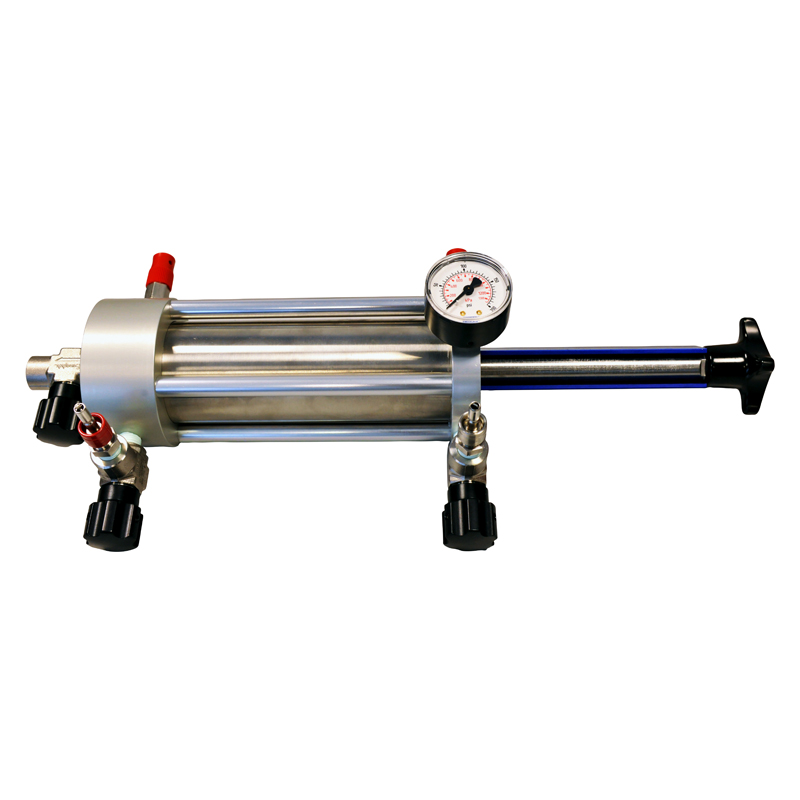

Crude Oil Manual Piston Cylinder - 80615-0

Methods
ASTM D6377
ASTM D8009

The Manual Piston Cylinder (MPC) enables crude oil samples to be taken from a storage tank, rail car or pipeline.

The crude oil remains a liquid and can be attached to the SetaVap4 vapour pressure tester for sampling without loss of volatile light ends for a safe and accurate test.

Measuring the vapour pressure of crude oil helps to prevent costly damage to pipelines or vessels during transport and storage. Learn more about measuring the vapour pressure of crude oil >

Inlet Connection Kit (80605-0) is required for quick and easy test set up.

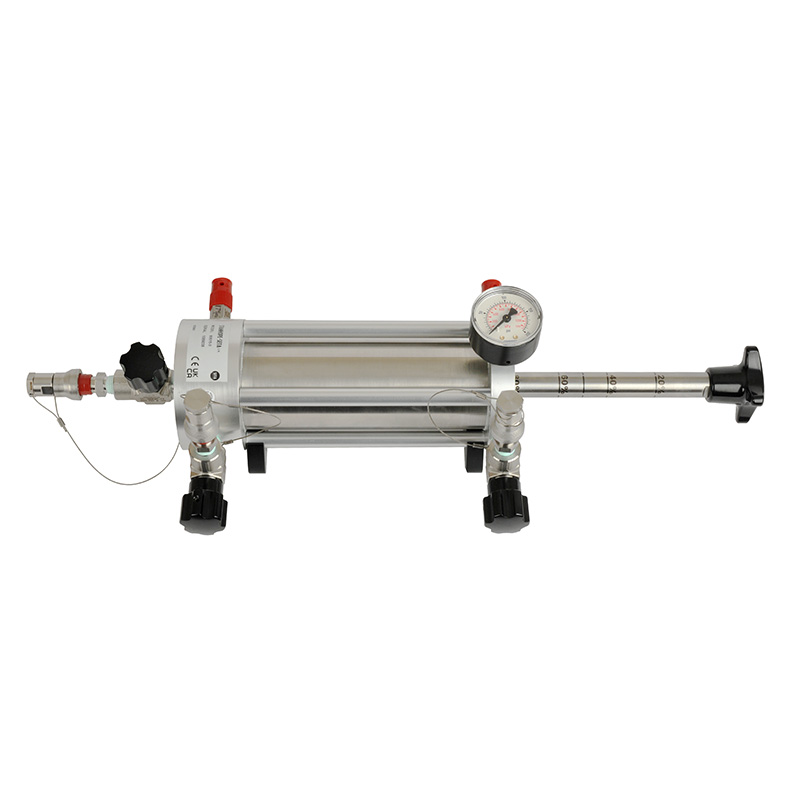

Crude Oil Manual Piston Cylinder - 80615-0

Features

  • Up to 1380 kPa (200 psi)
  • 500 ml sample volume
  • Light weight
  • Quick set up
  • Easy to use
  • Dual scale gauge (psi/kPa)

Additional Information

Maximum Allowable Working Pressure200 psi
Maximum Expected Operating Pressure175 psi
Operating Range-30 to 60°C
Safety Device2 x Swagelok Pressure Relief Valves (set at 150 psi)
Stroke Length7"
Total Volume500 ml
Fill Volume400 ml at 80% (volumetric fill guide included)
Whetted SealsFFKM

Methods

ASTM D6377
ASTM D8009
ASTM D6377 Determination of Vapor Pressure of Crude Oil: VPCRx?(Expansion Method)
ASTM D8009 Standard Practice for Manual Piston Cylinder Sampling for Volatile Crude Oils, Condensates, and Liquid Petroleum Products
