Setaflash Series 8 Closed Cup Flash Point Tester – High Temperature - 82000-0

Methods
ASTM D3278
ASTM D3828
ASTM D7236
ASTM D8174
ASTM E502
IP 523
IP 524
IP 534
IP 602
CLP Regulations EC No 1272/2008
EPA 1020 A & B
ISO 3679
ISO 3680 (Obs)
ISO 9038

The Setaflash Series 8 is an automated closed cup flash point tester with a temperature range of ambient to 300 °C (ambient to 572 °F). The instrument uses an electric hot wire ignitor.

There are two modes of flash point operation:
– Flash
– No Flash and Ramp

The ramp mode increases the sample temperature at a rate of 2 °C/min. The dipping sequence occurs automatically every 1 °C up to 100 °C (every 2 °C rise above 100 °C), until either a flash is detected or the end of test temperature is reached. The ignitor uses a new electrical hotwire (a gas flame option is available).

Setaflash Series 8 Closed Cup Flash Point Tester – High Temperature - 82000-0

Features

  • Small sample size, 2 or 4 ml
  • Electric ignitor
  • Automatic dipping and flash detection
  • 64 Test memory & RS232 interface
  • °C or °F temperature display
  • Forced air cooling for rapid test cycling

Additional Information

The bright colour LCD display shows test parameters and the flash point result. The text and colour of top line of the display indicates the instrument status. You can access all functions via menus, navigated by the keypad. Audible prompts are given when you are required to perform an action.
The automatic flash detection system is tuned to ignore halo and other false flash effects, enhancing precision and accuracy. Barometric pressure is measured by an internal barometer, and the correction is automatically applied to the test result.

Flash point testing at low temperature
For tests with a starting temperature of 10 °C (50 °F) or lower, you must connect the Series 8 ActiveCool to a chilled water supply that is maintained at 5 °C with a flow of at least 0.6 l/min

Supplied with:

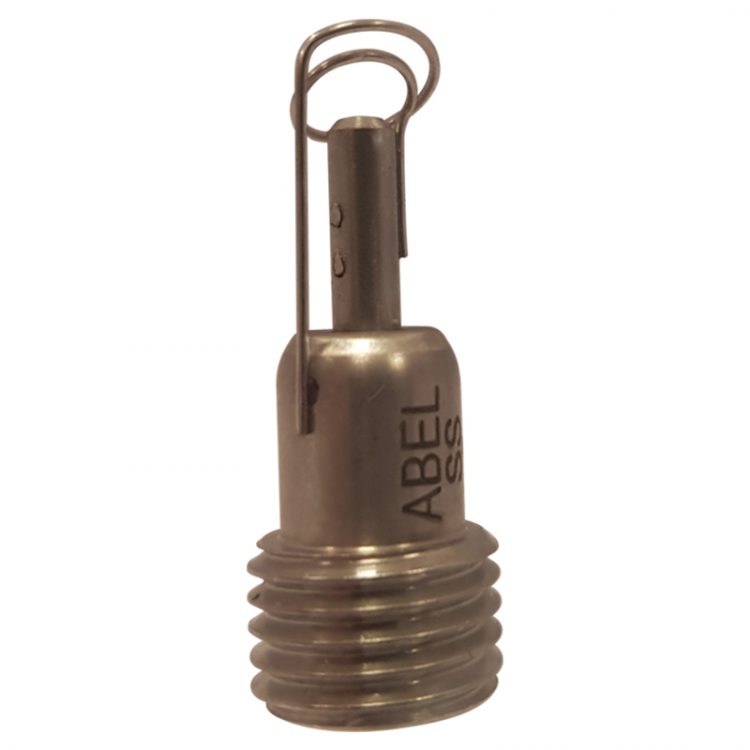

Ignitor
2 ml syringe
Mains lead
Instruction manual

Temperature RangeAmbient to 300 °C (Ambient to 572 °F)
Sample Size2 or 4 ml according to method
IgnitorElectrical Hot Wire
Test duration, Rapid Equilibrium Mode1 minute below 100 °C, 2 minutes above 100 °C,
Test duration, Ramp ModeTypically 7 minutes
Sample Cup MaterialAluminium
Heating/Cooling MethodCeramic Pad, Forced Air (post-test cooldown)
Voltage100 to 250 V, 50/60 Hz (2 x AA dry cell batteries required for internal clock)
Power300 W (maximum)
Size (HxWxD)300 x 340 x 380 mm
Weight8 kg
CCCN CodeTariff 90268020

Methods

ASTM D3278
ASTM D3828
ASTM D7236
ASTM D8174
ASTM E502
IP 523
IP 524
IP 534
IP 602
CLP Regulations EC No 1272/2008
EPA 1020 A & B
ISO 3679
ISO 3680 (Obs)
ISO 9038
ASTM D3278 Standard Test Methods for Flash Point of Liquids by Small Scale Closed-Cup Apparatus - paints, enamels, lacquers, varnishes, and related products
ISO 3680 (Obs) Methods of test for paints. Tests on liquid paints (excluding chemical tests). Test for flash/no flash (rapid equilibrium method)
ASTM E502 Standard Test Method for Selection and Use of ASTM Standards for the Determination of Flash Point of Chemicals by Closed Cup Methods
ISO 3679 Determination of flash point. Rapid equilibrium closed cup method
EPA 1020 A & B Setaflash Closed-Cup Method for determining ignitability
ASTM D3828 Standard Test Methods for Flash Point by Small Scale Closed Tester
IP 523 Determination of flash point. Rapid equilibrium closed cup method
IP 524 Methods of test for paints. Tests on liquid paints (excluding chemical tests). Test for flash/no flash (rapid equilibrium method)
ASTM D7236 Flash Point by Small Scale Closed Cup Ramp Method
IP 534 Flash Point by Small Scale Closed Cup Ramp Method
ISO 9038 Determination of sustained combustibility of liquids
IP 602 Determination of sustained combustibility of liquids
CLP Regulations EC No 1272/2008 European Regulation (EC) No 1272/2008 on classification, labelling and packaging of substances and mixtures
ASTM D8174 Standard Test Method for Finite Flash Point Determination of Liquid Wastes by Small-Scale Closed Cup Tester
