AvCount2 Particle Counter - SA1000-2

Methods
ASTM D975
ASTM D7619
ASTM D7647
IP 565
AS 4059
DEF STAN 91-091
DEF STAN 91-86
GB 5930
GJB 420-1987/420-A-1996/420B-2006
GOST 17216
ISO 4406 (1999) & (1991)
NAS 1638
SAE 749D
SAE A6D

The AvCount2 portable particle counter determines the particle distribution in a liquid sample, whether checking the quality of fuel, filter systems or in service lubricants.

• Precise and reliable
• Simple operation using the touchscreen display and straight from the bottle samples
• Portable
• Particle count and cleanliness code

15 test methods are preset within the AvCount2 with particle counting results delivered fast.

The compact design of AvCount2 makes it ideal for use in your laboratory, whilst the portable build suits the production line or portable test applications.

Skydrol resistant version available

AvCount2 Particle Counter - SA1000-2

Features

  • Calibrated to ISO 11171, traceable to NIST SRM 2806b
  • Switchable NIST 2806a calibration on request
  • Cumulative & distributive particle numbers
  • Test time <6 minutes

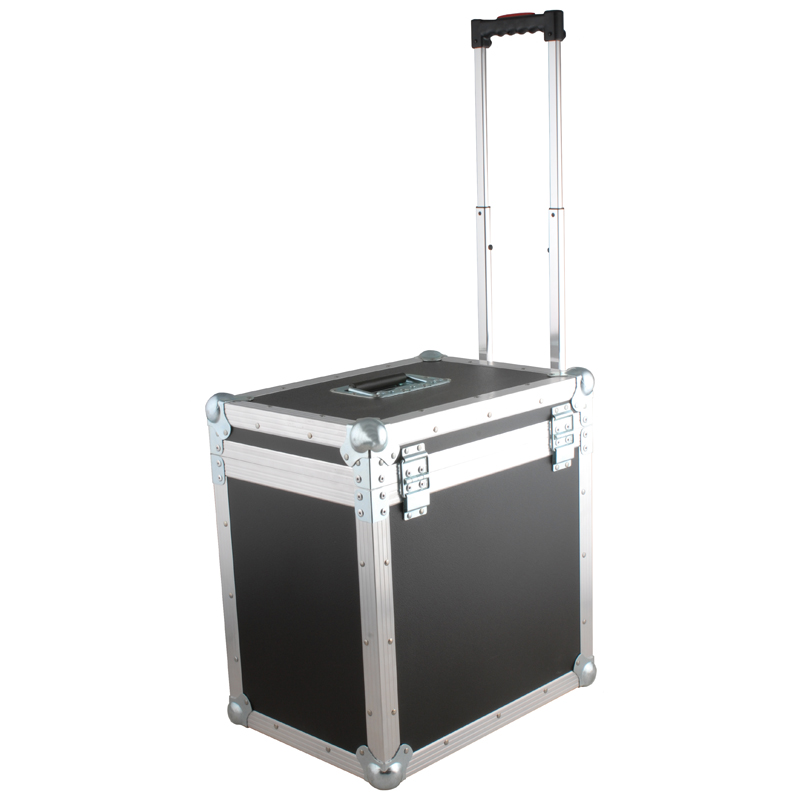

  • Rugged, aluminium case suitable for portable use
  • 15 fixed measuring channels (calibration in compliance with ISO 11171 for measuring in oil)
  • Upper and lower limit alarm outputs
  • Optional in-line high pressure testing up to 315 Bar

Additional Information

Automatic Test Sequence
The AvCount2 is fully automatic once the particle count test sequence is started. The flushing/sample analysing sequences are automatically repeated in accordance with the selected test method for precise results.

Results Analysis
Results are shown for 6 particle size bands in Particles/ml and ISO Code. Results are stored within the internal memory, with space for up to 2000 sets of results. For analysis, you can print results from the integral printer or downloaded to a USB.
Particle Size RangeISO 11171: 4 µm(c) to >70 µm©; ISO 4402: 2 µm to >100 µm; GOST 17216-71: 2 µm to >200 µm
Measuring Channels15
Counts per Measurement (max)16,000,000 per 10 ml
Sample Viscosity (max)68 mm2/s
Sample Temperature Range0 to 80 °C
ResultsParticles/ml or Particles/10 ml (Test Method dependant) Cumulative and Distributive Cleanliness Codes, Cumulative or Distributive (Test Method dependant)
Cell Volume @ Flow Rate10 ml @ 30 ml/min
Total Sample Volume used (typ)80 ml (includes rinse cycles) for IP 565 & ASTM D7619, 20 ml other methods
Sample Pressure (max)10 bar (315 bar with SA1008-0 option)
Voltage100 to 250 Vac 50/60 Hz pr 24 Vdc 30 W
Size (HxWxD)240 x 330 x 240 mm
Weight12 kg
CCCN CodeTariff 90278099

Methods

ASTM D975
ASTM D7619
ASTM D7647
IP 565
AS 4059
DEF STAN 91-091
DEF STAN 91-86
GB 5930
GJB 420-1987/420-A-1996/420B-2006
GOST 17216
ISO 4406 (1999) & (1991)
NAS 1638
SAE 749D
SAE A6D
DEF STAN 91-091 Aviaton Fuel Specification
ASTM D975 Standard Specification for Diesel Fuel Oils , biodiesel, biodiesel blend, diesel, fuel oil, petroleum and petroleum products
IP 565 Determination of the level of cleanliness of aviation turbine fuels – portable automatic particle counter method
ASTM D7619 Method for counting and sizing particles in light and middle distillate fuels, and liquid bio fuels, by automatic particle counter
ISO 4406 (1999) & (1991) Hydraulic fluid power -- Fluids -- Method for coding the level of contamination by solid particles
GOST 17216 Grades of liquids purity
NAS 1638 Cleanliness requirements of parts used in hydraulic systems
SAE A6D Contamination levels in Hydraulic systems
SAE 749D Measurement of oil cleanliness
GB 5930
GJB 420-1987/420-A-1996/420B-2006 Fluids contamination testing
DEF STAN 91-86 Turbine Fuel, Aviation Kerosine Type: High Flash Type
ASTM D7647 Standard test method for automatic particle counting of lubricating and hydraulic fluids using dilution techniques to eliminate the contribution of water and interfering soft particles by lght extinction
AS 4059 Describes particle concentrations in liquids
