Seta Smoke Point Apparatus - 10400-0

Methods
ASTM D1322
IP 57
IP 598
BS 2000-57 & ISO 3014

The Seta Smoke Point Apparatus determines the smoke point of kerosine and aviation turbine fuel by measuring the maximum flame height prior to smoke formation and comparing the results with those of known standards.

Seta Smoke Point Apparatus - 10400-0

Features

  • Tripod stand, lamp body and chimney
  • Viewing window
  • Robust construction

Additional Information

The smoke point gives an indication of aromatic content and radiant heat transfer characteristics and has good correlation with ASTM D1740 (Luminometer number).

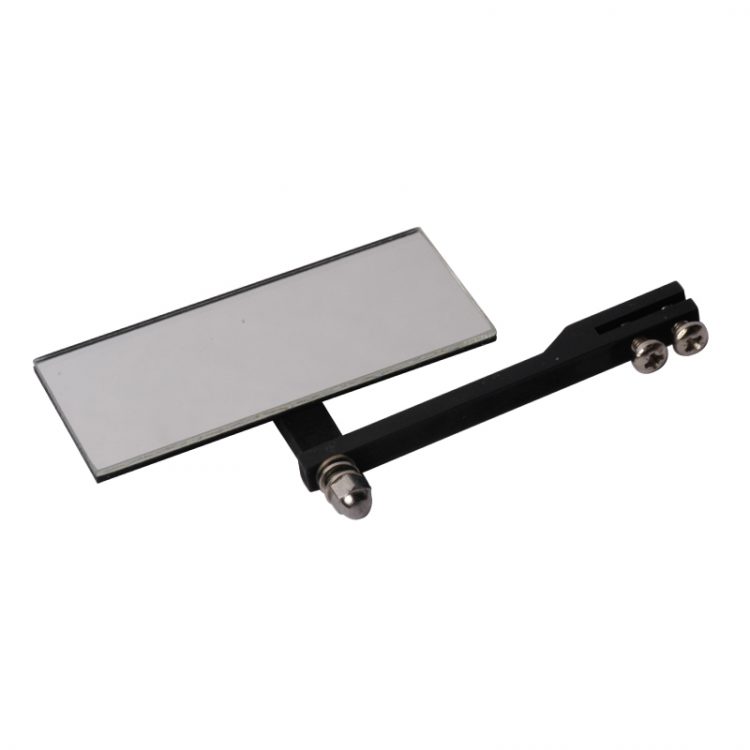

Comprises a tripod stand, lamp body, and chimney. The measuring scale is viewed through a curved glass window on the front of the instrument. A Seta Mirror (10450-0) can be attached to the chimney to aid smoke detection.

Supplied with a candle assembly, comprising a body to contain the sample, wick holder amd wick.

Size (HxWxD)47 x 21 x 19 cm
Weight2.6 kg
CCCN CodeTariff 90271090

Methods

ASTM D1322
IP 57
IP 598
BS 2000-57 & ISO 3014
ASTM D1322 Standard test method for smoke point of kerosine and aviation turbine fuel
IP 57 Petroleum products - Determination of the smoke point of kerosine
BS 2000-57 & ISO 3014 Petroleum products. Determination of the smoke point of kerosine
IP 598 Determination of the smoke point of kerosine, manual and automated method
