Seta RoBot Bath - 15200-5

Methods
ASTM D2272
ASTM D4742
IP 229

The Seta RoBot Bath is a floor standing unit, used for the evaluation of oxidation stability of new and in-service engine, turbine and insulating oils in the presence of water and a copper catalyst.

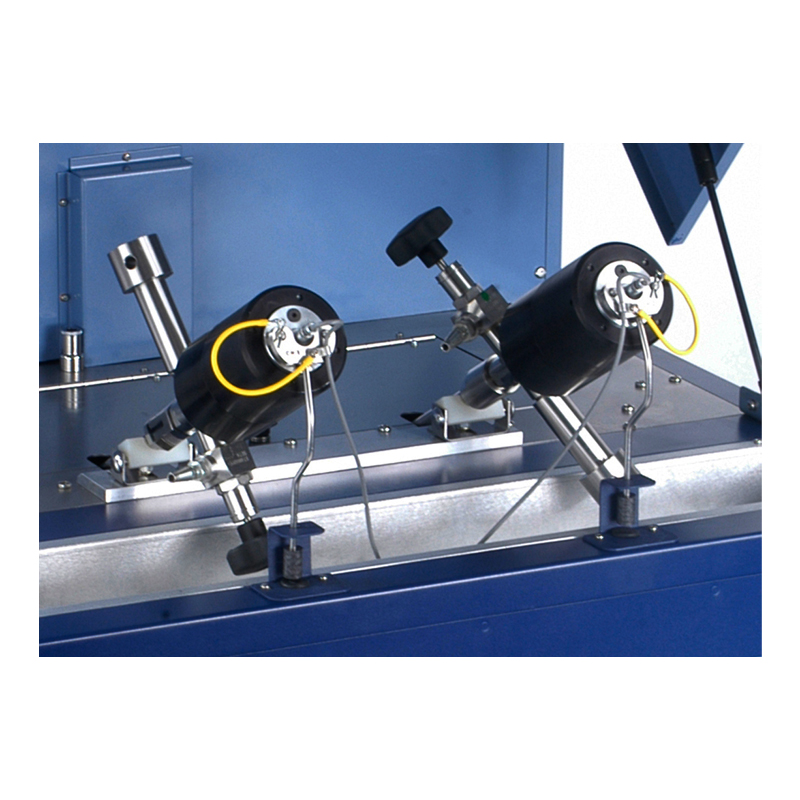

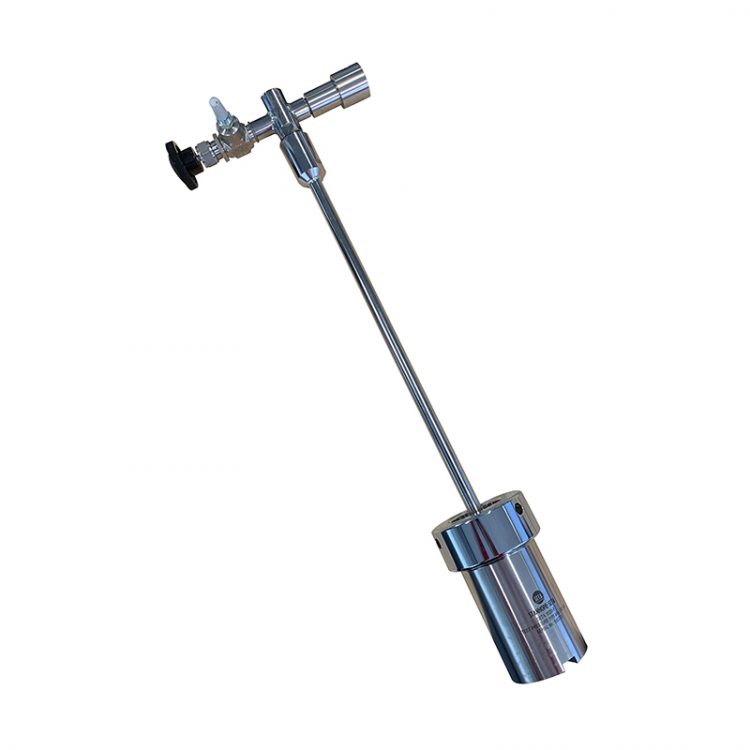

Up to two RoBot Oxidation Vessels (15210-5) are supported at an angle of 30° in an oil bath, and rotated at 100 rev/minute by an electric motor and bevel gear drive.

The 72 litre oil bath is digitally temperature controlled. A hinged hood, fitted with a safety interlock that switches off the motor when opened to protect the operator from the rotating test vessels. The bath is equipped with low fluid level and over-temperature protection devices. Extraction fans remove silicone oil vapours and fumes from the bath.

Seta RoBot Bath - 15200-5

Features

  • Ambient to 160 °C
  • Two test stations
  • Fume extraction
  • Gear drive
  • Optional pressure monitoring

Additional Information

Supplied with;
Mains lead
Instruction manual.

Certification: Supplied with UKAS pressure test certificate.

Temperature rangeAmbient to 160 °C
Temperature stability±0.1 °C
Bath capacity72 litres
Bath fluidSilicone Oil
Number of vessels2
Rotational speed100 rev/min
Voltage220/240 V, 50 Hz 220/240 V, 60 Hz
Power3.2 kW
Size (HxWxD)113x78x88 cm
Weight87 kg
CCCN CodeTariff 90269000

Methods

ASTM D2272
ASTM D4742
IP 229
ASTM D2272 Oxidation Stability of Steam Turbine Oils by Rotating Bomb
ASTM D4742 Oxidation Stability of Gasoline Automotive Engine Oils by the Film Oxygen Uptake (TFOUT)
IP 229 Determination of the relative oxidation stability by rotating bomb of mineral turbine oil
