Seta Multiflash Cleveland Flash Point Module - 34300-2

IP 36

The automatic Cleveland module conforms precisely to national and international Cleveland open cup flash point test methods. It comprises a sample cup, temperature probe, flash/fire detector, and a DIPS pod containing the sweeping mechanism with co-axial gas/electric ignitor.

The Cleveland module must be used with the Multiflash Automatic Flash Point – Universal Base Unit (34000-0). The base unit recognises that the Cleveland module is connected and instantaneously sets up standard test parameters and calibration data.

Learn more about flash point testing and which instrument you should be using >

Seta Multiflash Cleveland Flash Point Module - 34300-2


  • Fully self-contained flash/fire point test module
  • Ambient to 400 °C
  • Gas or electric ignition
  • Automatic heating control, flash and fire detection
  • Automatic test results & end of test audible warning
  • Automatic snuffer
  • Automatic barometric correction

Additional Information

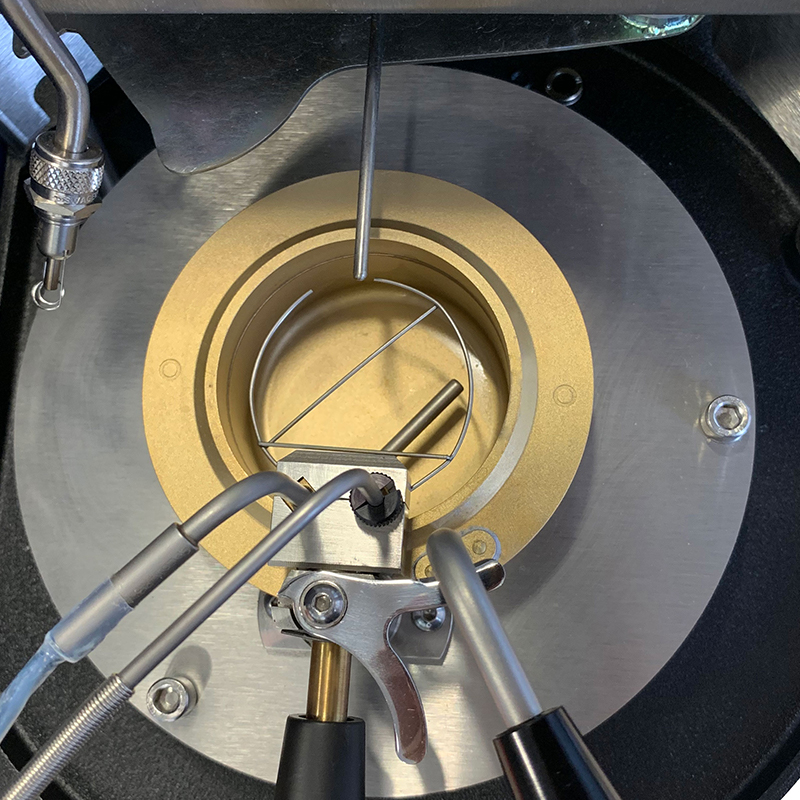

The flash point test area consists of a removeable sample cup in a thermal insulation ring, and a probe block for mounting the flash/fire detector and sample temperature probe. The sample cup is heated by the hotplate within the Multiflash Automatic Flash Point - Universal Base Unit (34000-0).

The DIPS pod contains the ignitor sweeping mechanism with a coaxial gas jet/electric hot wire ignitor, and a snuffer that extinguishes any flames in the sample cup at the end of the test.

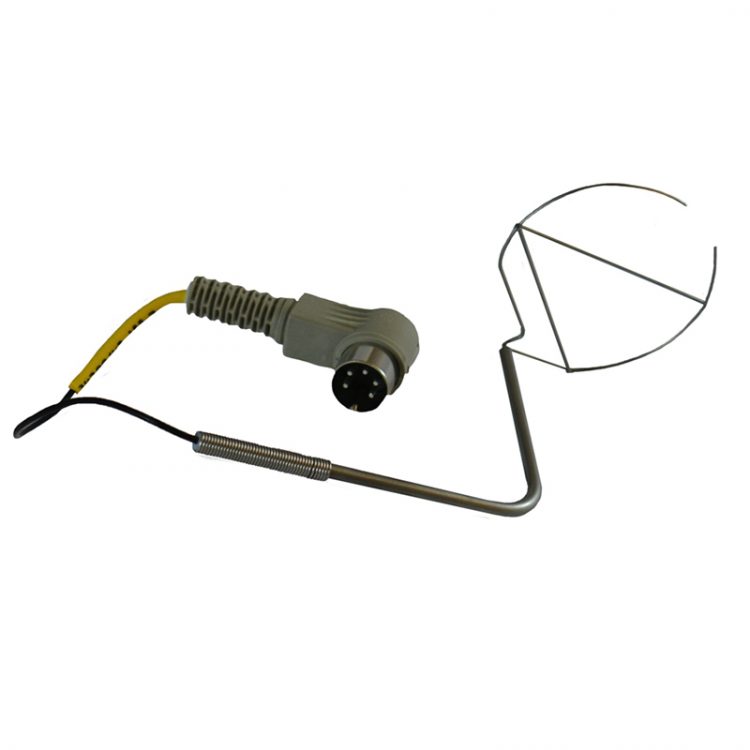

The sample temperature probe is a class A PRT, and flash/fire detection is by an ionisation ring.

Safety features include an initial sweep to check that the sample is below its flash point at the start of the test and a PRT check to ensure that the correct probe is connected and is immersed in sample. When in search mode, the software limits the maximum temperature to 50 °C above "expected flash". The snuffer automatically deploys at the end of the test or if the independent fire detection probe (mounted over the test area) detects a flame. The hotplate in the Multiflash Automatic Flash Point - Universal Base Unit (34000-0) is equipped with a cut-out to protect against over-temperature.

The optional Cooling Boost Accessory (34008-0) allows the test area to be rapidly cooled in between tests by a blast of compressed air.

Supplied with;
Test Area
Ionisation ring flash detector
Fire detector
Sample PRT
Sweep arm setup tools
Interconnection cables
Instruction manuals

Temperature RangeAmbient to 400 °C
Post Test CoolingFan assisted or Forced Air (Requires 34008-0 Cooling Boost Module option)
Post Test Cool-down Time (90°C to 50°C)9 minutes (Fan) 6 minutes (Forced Air)

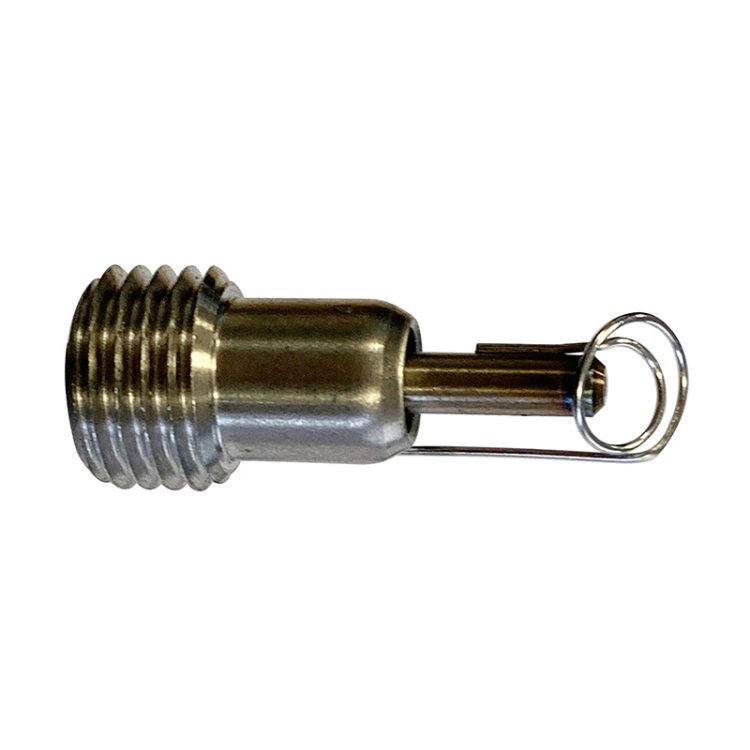

IgnitorQuick-fit coaxial gas jet / electric hot wire, user selectable (Electric hot wire pilot light for gas jet)
Temperature ProbeClass A Platinum Resistance Thermometer, °C or °F
Flash / Fire DetectionIonisation Ring
Gas Supply (gas jet ignitor)Laboratory gas, 3 kPa (0.44 psi) maximum pressure
Air Supply (forced air coolingDry compressed air, 670 kPa (100 psi) maximum pressure
Voltage110/120 V or 220/240 V, 50/60 Hz, (switchable)
Power1 kW
Size (HxWxD)33 cm x 47 cm x 42 cm
Weight12 kg
CCCN CodeTariff 90268020


IP 36
ASTM D92 Standard test method for flash and fire points by cleveland open cup
IP 36 Determination of flash and fire points - Cleveland open cup method (ISO 2592:2000)
BS DIN EN ISO 2592 Determination of flash and fire points. Cleveland open cup method
