chevron_rightSeta Compact Cloud and Pour Point Cryostat - 94100-4
Methods
ASTM D97
ASTM D2500
ASTM D5853
IP 15
IP 219
IP 441
BS 2000-15 & ISO 3016
BS EN 23015 & BS 2000-219 & ISO 3015
The Seta Compact Cloud and Pour Point Cryostat has three 2 litre compartments which are independently temperature controlled and can accommodate four Air Wells. Each compartment has a temperature range of ambient to -34 °C. The lid is electrically heated to prevent the formation of ice and condensation. Refrigeration is accomplished by a two stage CFC free system.
Features
- Three individually temperature controlled compartments
- Four air wells in each compartment
- CFC free refrigeration system
- Heated anti-condensation lid
- Non flammable refrigerant, compliant with F-Gas Regulation
Additional Information
Supplied with: 12 test jars (each comprising graduated glassware, thermometer cork, insulating gasket and disk, a compartment thermometer, instruction manual.
Note: Due to the low operating temperature of this bath it is recommended that the compartments are filled with Butyl Glycol
Temperature range | Ambient to -34 °C |
---|---|
Compartment volume | 2 litre |
Cool down time (single compartment) | approx 1 hr (from 32 °C to -34 °C) |
Refrigerant | CFC Free; Single Stage R452a |
Voltage | 220/240 V, 50 Hz |
Power | 750 W |
Size (HxWxD) | 600 x 600 x 850 mm |
Weight | 115 kg |
Total test positions | 12 |
CCCN Code | Tariff 84185019 |
Industries
Methods
ASTM D97
ASTM D2500
ASTM D5853
IP 15
IP 219
IP 441
BS 2000-15 & ISO 3016
BS EN 23015 & BS 2000-219 & ISO 3015
ASTM D5853 | Standard test method for pour point of crude oils |
---|---|
IP 219 | Determination of cloud point |
ASTM D97 | Standard test method for pour point of petroleum products. |
ASTM D2500 | Standard test method for cloud point of petroleum products and liquid fuels |
IP 15 | Petroleum products, determination of pour point. |
IP 441 | Determination of the pour point of crude petroleum. |
BS 2000-15 & ISO 3016 | Methods of test for petroleum and its products. Determination of pour point |
BS EN 23015 & BS 2000-219 & ISO 3015 | Petroleum products. Determination of cloud point. |
Spares and accessories for Seta Compact Cloud and Pour Point Cryostat - 94100-4

Insulating Disc (Pack of 20) - 11000-004
View accessory
Insulating Gasket (Pack of 20) - 11000-003
View accessory
Graduated Jar and Cork (Pack of 10) - 11000-002
View accessory

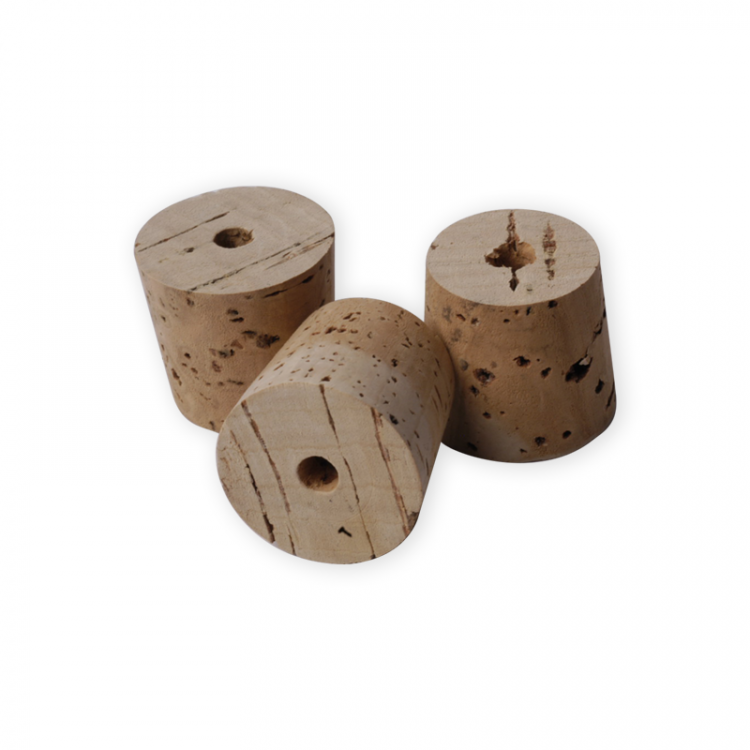

Thermometer: Cork for Jar - 93531-202
View accessory
Brass Air Well (Pack of 4) - 93531-201
View accessory
