Seta Multiflash Automatic Flash Point – Universal Base Unit - 34000-0

Methods
ASTM D56
ASTM D92
IP 36
IP 170
IP 491
IP 492
EN ISO 2592
EN ISO 13736
ISO 1516
ISO 1523

Multiflash is a fully universal and automated flash point tester designed for testing fuels, lubricating oils, solvents, chemicals, waste materials and many other substances. The instrument is simple to use and provides fast and reliable operation. It is ruggedly designed for continuous use with a very low cost of maintenance.

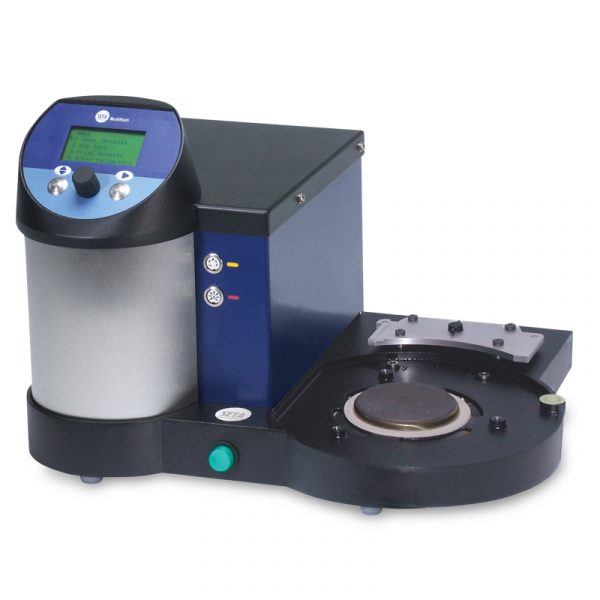

Multiflash comprises a universal base unit (34000-0) that houses the display, control and electronics. Interchangeable test cup modules allow for all primary flashpoint test methods to be performed. You can select from the following options;

* 34200-0 Abel (IP 170; IP 492; EN ISO 13736; ISO 1523)
* 34300-2 Cleveland (ASTM D92; IP 36; EN ISO 2592)

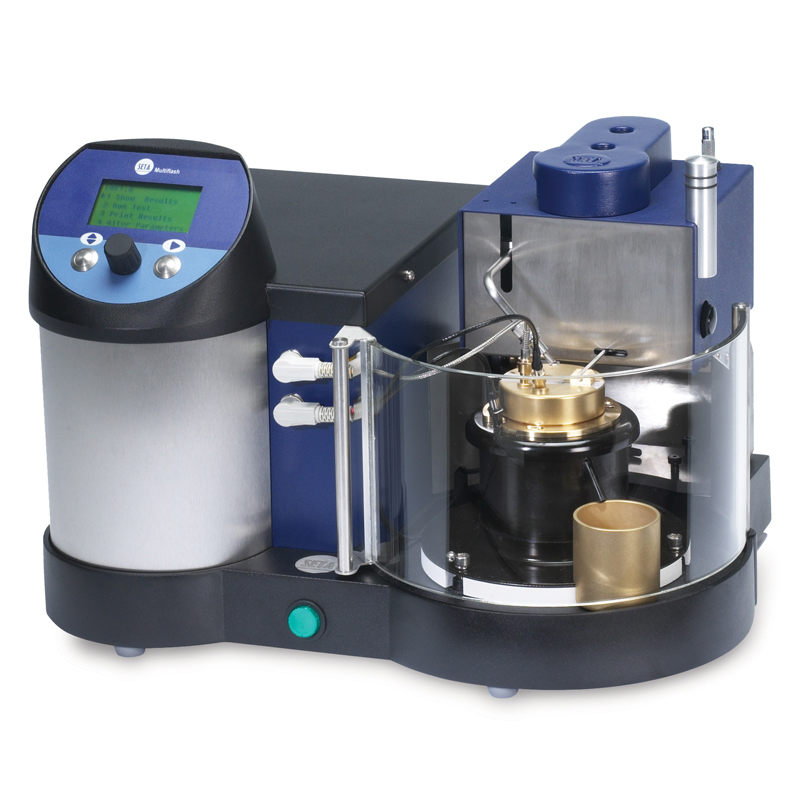

* 34400-0 Tag (ASTM D56; IP 491,492; ISO 1516,1523)

Learn more about flash point testing and which instrument you should be using >

Seta Multiflash Automatic Flash Point – Universal Base Unit - 34000-0

Features

  • One universal base unit for all primary flash point tests
  • Gas and electric ignition are supported as standard
  • Centigrade or Fahrenheit temperature display
  • Highly automated and easy to use
  • Rapid and precise test results
  • Inbuilt safety
  • Remote end of test result

Additional Information

Options

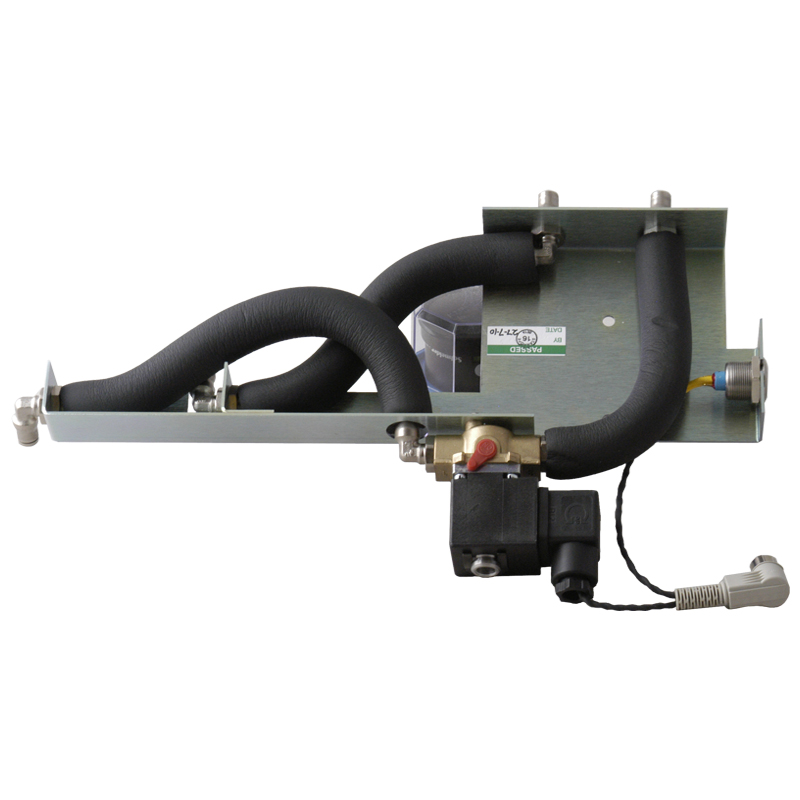

Abel and Tag modules require the Cooling Boost Accessory (34008-0).

Enhanced cooling can be achieved for Cleveland if the cooling boost accessory is fitted.

For testing samples at sub ambient temperatures (Abel, Tag) a cryostat cooler is needed. Cryostat (-20 °C) (34006-3) is suitable.
CCCN CodeTariff 90268020

Methods

ASTM D56
ASTM D92
IP 36
IP 170
IP 491
IP 492
EN ISO 2592
EN ISO 13736
ISO 1516
ISO 1523
ASTM D56 Standard test method for flash point by Tag closed cup tester
ISO 1516 Flash Test Using The Cup of Any Standard Closed Cup Apparatus
ISO 1523 Flash Test Using The Cup of Any Standard Closed Cup Apparatus
IP 170 Petroleum products and other liquids - Determination of flash point - Abel closed cup method (ISO 13736:1997)
IP 491 Determination of flash/no flash - Closed cup equilibrium method
IP 492 Determination of flash point - Closed cup equilibrium method
ASTM D92 Standard test method for flash and fire points by cleveland open cup
IP 36 Determination of flash and fire points - Cleveland open cup method (ISO 2592:2000)
EN ISO 13736 Determination of flash point. Abel closed-cup method
EN ISO 2592 Determination of flash and fire points. Cleveland open cup method
